Product Description:

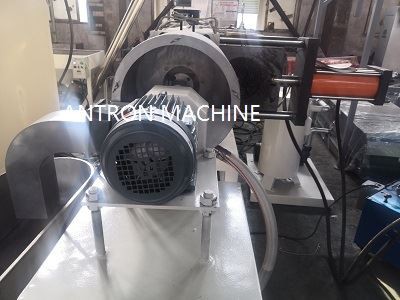

Parallel Twin Screw Extruder for PET granules core section is composed of parallel type cylinder and two screws which mesh each other.

Parallel Twin Screw Extruder for PET granules has drive system, control system, feeding system, and to form a kind of special extruding, granulating and shaping processing equipment.

The Parallel Twin Screw Extruder For PET Granule has screw stem and cylinder adopt building type design principle to change the length of the barrel, choose different screw stem parts to assemble the screw according to material characteristics to get the best work condition and the most effective method to get the max function.

Main technical parameter:

Type	TSK65	TSK75	TSK95
Diameter(mm)	63	72	95
Rotational speed of screw(r/min)	400/500	400/500	400
Power(kw)	55/75	75/110	240
L/D	32-48
Output(kg/h)	8	10	10
Crushing capacity Kg/h	150-375	200-500	800-1000

Main Machine List for 300kg/h:

300 KG/H plastic recycling extruder machine
No.	Name	SPECIFICATIONS	Amount
1	Twin-screw main feeding system	Motor power: 1.5KW	1 set
2	SHJ-65 co-rotating twin-screw extruder	L/D=40, SHJ-65 AC main Motor 75KW	1set
3	Vacuum venting system	Vacuum pump power:1.5KW	1set
4	Oil lubricant system	Motor power: 0.37KW	1set
5	Soft water cooling system	Motor power: 0.55KW	1set
6	Hydraulic screen changer	Motor power: 1.5KW	1set
7	LQ-300 model pelletizer	Motor power: 4KW	1set
8	Air-dry blower	Motor power: 1.5KW	1set
9	4 meter water trough		1set
10	Electrical control cabinet		1set
