Product Description:
The plastic granule machine for eva plastic has two kinds of types.
One is the Single Stage Compacting Pelletizing Line which is used for HDPE/LDPE/LLDPE/PP EVA ABS rigid material and foam materials. If your material is more clean (not dirty), you can use this type. Other is the Double Stage Pelletizing Line which is used for HDPE/LDPE/LLDPE/PP EVA ABS rigid material and foam materials. Compared with single stage, double stage works more stable, produces more clean and more density granules.
We can design the layout according to customers' workshop.
Product basic description:
Machine Model | SJ85,SJ100,SJ120,SJ130,SJ140,SJ150,SJ160,SJ180,SJ200 |
Target Recycled Material | HDPE, LDPE, PP, BOPP, CPP, OPP, PA, PC, PS, PU, ABS |
Final Product Shape | Pellets/Granules |
System composition | Belt Conveyor, Side force feeding, Single Screw Extruder, Hydraulic screen changer (Filtration), Pelletizer mould, Water Cooling tank, Air blower,Pelletizing Cutter, Air blower and Product Silo. |
Output Range | 150kg/h-1200kg/h |
Feeding Device | Belt Conveyor (Standard), Roll Hauling off device (Optional),Screw loader(Standard) |
Compactor Volume | 300L-1400L |
Diameter of screw | 80mm-180mm (Standard) |
Material of screw | 38CrMoAlA (SACM-645), Bimetal (Optional) |
L/D of screw | 30/1, 33/1, 34/1, 36/1 (According to the characteristics of recycling) |
Heater of barrel | Ceramic heater or Far-infrared heater |
Cooling of Barrel | Air cooling of fans through blowers |
Vacuum deashing exhaust | One or Two Double-zone vacuum degassing system (Standard) |
Pelletizing type | Water-ring pelletizing/ water-strands pelletizing/ Under-water pelletizing/Hot die-face pelletizing |
Voltage Standard | According to the Voltage of the Customer's Location |
Optioanl device | Metal detector, Roll hualing off device, Masterbatch and additives feeder |
Warranty | 13 months from the date of bill of lading |
Technical services | project design, factory construction, installation and recommendations, commissioning |
Materials Feeding types for pelletizing machine:
1. Hopper feeder (suitable for agglomerated material, hard scrap material,crushed hard flakes)
2. With a separate agglomerator machine (suitable for film, bag etc, agglomerate small flakes )
3. Compactor (suitable for bundled big size film bag,woven bags,fabric,nylon etc)
4. Reel feeder (suitable for film roller)
5. Side force feeder(suitable for film scraps, hard material scraps)
6. Vertical force feeder (suitable for film scrap and hard material scrap)
Main Technical Parameter:
Model | Screw Diameter(mm) | Main Motor Power(kw) | Side Force Feeder Motor Power(kw) | Capacity(kg/h) |
SJ100/30 | Φ100 | 55-75 | 5.5 | 150-200 |
SJ120/30 | Φ120 | 75-90 | 7.5-11 | 200-350 |
SJ130/30 | Φ130 | 90-110 | 11 | 300-400 |
SJ150/30 | Φ150 | 132-160 | 15 | 350-500 |
SJ160/30 | Φ160 | 160-185 | 15 | 450-550 |
SJ180/30 | Φ180 | 185-200 | 18.5 | 600-800 |
SJ200/30 | Φ200 | 200-250 | 22 | 800-1000 |
Remark: Single stage or Double stage is optional. The above capacity is based on film scrap/rigid flake/agglomerated material, actual capacity varies on account of different condition of raw material.

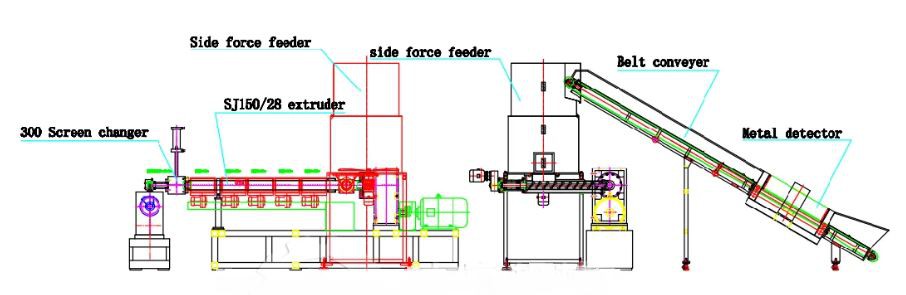

Machine Layout:
Raw Materials and Final Products:
 |  |
Machine Delivery
 |  |
 |  |
