Product description:

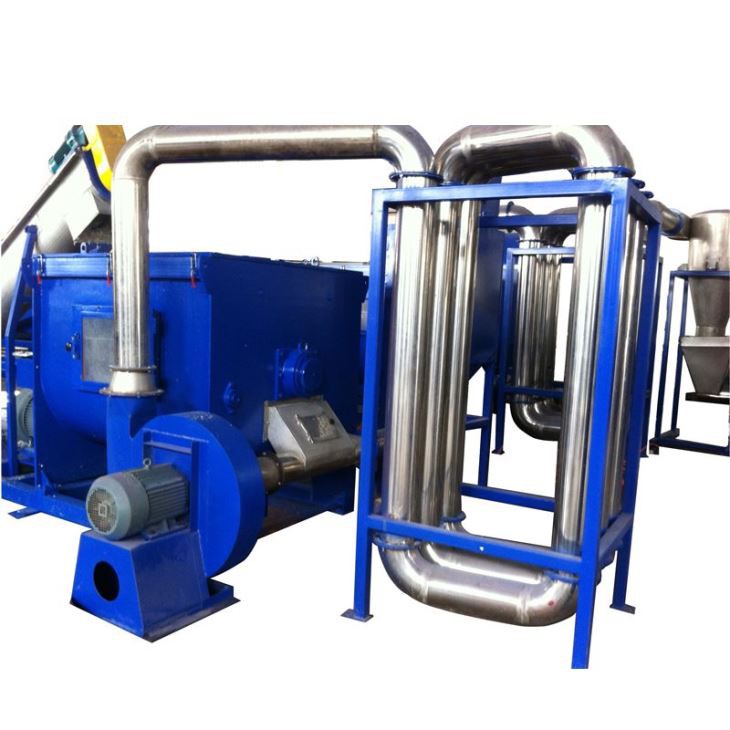

This machine is the ideal PP/PE recycling system for PP/PE material . We have been a professional manufacturer of plastic recycling machines in China for many years. plastic washing recycling machine is also called PE, PP film crushing, washing, dewatering and drying line. We can supply production line with capacity from 300kg/h to 2000kg/h. The plastic washing recycling machine complete line includes crushing, floating washing, friction washing, dewatering and drying.
Progress flow(500KG/H pp pe film standard system):
1. Belt conveyor: conveying dirty plastic film or bag into crusher. If too much scrap iron, metal detector may be needed.
2. Crusher: can crushing with water, cut plastic film or bag into small pieces
3. Screw loader: load film pieces into the next step
4. High-speed washing machine: Washing out the sand, soil and loading the material
5. Washing tank: separate the sand, soil and other dirties
6. Squeezing dryer machine: Remove the water from the material
Part parameter of machine:
The product line main components
Name | Spec | Qty unit price | S.S thickness | |
1 | Belt Conveyer | 1.5kw | 1 pc. | |
2 | Label Cap Separator Machine | 22kw | 1 pc. | |
3 | Sorting Table + Belt Conveyer | 1.5 +1.5 kw | 1 pc. | |
4 | Crusher SWP800 | 45kw | 1 pc. | |
5 | Friction Washer | 7.5kw | 1 pc. | |
6 | Hot Washer Tank | 5.5kw | 1 pc. | |
7 | Screw Loader | 2.2 kw | 1 pc. | 3-5mm |
8 | Washing Tank | 2.2kw | 1 pc. | 3-5mm |
9 | Washing Tank | 2.2kw | 1pc | 3-5mm |
10 | Horizontal Conveyor Centrifugal Dewater Machine | 7.5 kw | 1 pc. | |
11 | Pipe Drying System | 36+5.5kw | 1 pc. | |
12 | Storage Bunker | 1 m3 | 1 pc. | 1.5-3mm |
13 | Electrical Equipment | Delixi, | 1 pc. | |
14 | Spare Blade | l Set | 1pc | |
15 | Blade Sharpen Machine | 2.2Kw | 1pc |
Main Machine Technical Parameter:
Model | Capacity(kg/h) | Power consumption(kw) | Water consumption(ton/h) | Artificial | Humidity |
PP PET-300 | 300 | 125 | 3 | 3 | Below 5% |
PP PET-500 | 500 | 260 | 4-5 | 3 | Below 5% |
PP PET-1000 | 1000 | 395 | 6 | 4 | Below 5% |
The Raw Materials:
The Final Products:
