Product Description
1. The screw and barrel of the pelletizing line are made of 38CrMoAl, and the surface is hardened by nitriding, with a long service life;
2. The gear box of the granulation line adopts hard tooth surface oil cooling gear box, the weight is reduced by half compared with the soft tooth gear box, wear resistance, service life is increased by 3 to 4 times, and bearing capacity is increased by 8 to 10 times;
3. After PE film granule recycling line is discharged, the water ring cuts the granules directly, dehydrates by the dehydration machine, sorts the appropriate granules by the vibrating screen, and is sent to the storage silo by the fan.
4. Drainage port and vacuum pump are provided on the barrel of the pelletizing line to ensure the quality of the particles.

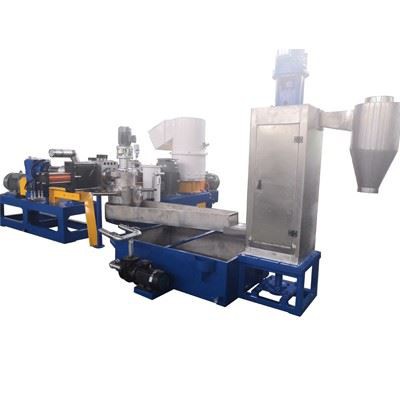

The PE film granule recycling line with special design can assure the good compounding effect and more solid pellet.
This kind of PE film granule recycling line is especially suitable for recycling dirty waste and production of repelletizing.
Main Draft of recycling line:
waste plastic →convey feeding→magnetic screening →forced feeding→degassing single screw extruder→hydraulic screen exchanger→material outing mould→degassing single screw extruder →hydraulic screen exchanger → material outing mould →water tank→drying system →cutting granulating unit →storage hopper
The granule line main machines:
| Item NO. | Item name | Quantity | Power |
| 1 | Belt conveyor | 1set | 2.2kW |
| 2 | Φ100/28single screw extruder | 1 set | 132kW |
| 3 | Compactorr | 1 set | 90kW |
| 4 | Hydraulic screen changer system | 1 set | 2.2kW |
| 5 | Φ100/10 single screw extruder | 1 set | 55kW |
| 6 | Hydraulic screen changer system | 1 set | 2.2kW |
| 7 | Water-ring die face cutting system | 1 set | 2.2kW |
| 8 | water slot | 1 set | --- |
| 9 | Centrifugal dryer | 1set | 7.5kW |
| 10 | Vibration | 1set | 2*0.22kW |
| 11 | Wind transmission system | 1 set | 4kW |
| 12 | Storage Silo | 1 set | --- |
| 13 | Electrical control box | 1 set | --- |
The Machine Layout:
1.Belt conveyor
2.Compactor
3.Single screw extruder machine
4.Hydraulic screen exhanger
5.Single screw extruder machine
6.Hydraulic screen exhanger
7.Vertical Water-ring die face cutting system
8.Water slot
9.Centrifugal dryer
10.Vibration
Main Parameter Data Sheet:
Model | Screw diameter(mm) | L/D | Capacity(kg/h) | Main motor power(kw) | compactor power(kw) | Line length(m) |
PP/PE-85 | 85 | 25-33 | 200-250 | 75 | 55 | 10 |
PP/PE-100 | 100 | 25-33 | 250-300 | 90 | 55 | 12 |
PP/PE-120 | 120 | 25-33 | 350-400 | 110 | 90 | 15 |
PP/PE-130 | 140 | 25-33 | 400-500 | 132 | 110 | 18 |
PP/PE-160 | 160 | 25-33 | 600-800 | 160 | 110 | 20 |
PP/PE-180 | 180 | 25-33 | 600-800 | 250 | 132 | 26 |
Our Service:
1. We will provide all the machines for the complete production according to customer's requirements.
2. We will provide complete service for factory layout and other information to help customer to build the factory.
3. We will provide good service for machine installation and training, until the customers can run the machines and make stably production.
4. Except one year quality guarantee, we will provide after-sell service for all the life.
5. For long-term cooperation, we always provide good quality, good price and good service to customer.
