Main machines in line
Belt conveyor
1. Belt material: 5mm thick PVC with long service life
2. Frequency conversion control, automatic feeding, the feeding amount is controlled by the current of the pelletizer
3. Height adjustable

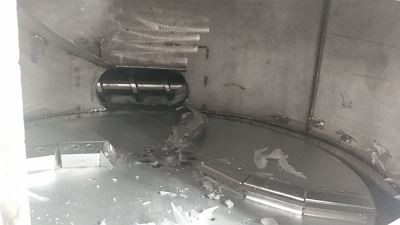

2.Compactor
1. Combining crushing, compaction, agglomeration, dehumidification, drying and feeding
2. Hydraulic cover opening, easy to clean the inside of the granulator and replace the blade
3. Special arrangement of fixed knife and movable knife, the output can be increased by 10%
3.Single Screw Extruder
1. Single screw extruder with vacuum exhaust system
2. Single-screw extruders rely on physical shear to "softly melt" pre-compacted materials. For different materials, screw compression ratio, length to diameter ratio, shear, mixing, exhaust will be targeted design. The barrel screw can be sprayed or welded with alloy to provide service life.
Horizontal water ring pelletizing system
1. The exclusive use of horizontal water ring pelletizing system can realize the fusion of "20 pure PP die face
2. The linear guide rail used in the system greatly facilitates the operation and maintenance of the system: the split design is more convenient for cleaning and tool change
The granule line main machines:
| Item NO. | Item name | Quantity | Power |
| 1 | Belt conveyor | 1set | 2.2kW |
| 2 | Φ100/28single screw extruder | 1 set | 132kW |
| 3 | Compactorr | 1 set | 90kW |
| 4 | Hydraulic screen changer system | 1 set | 2.2kW |
| 5 | Φ100/10 single screw extruder | 1 set | 55kW |
| 6 | Hydraulic screen changer system | 1 set | 2.2kW |
| 7 | Water-ring die face cutting system | 1 set | 2.2kW |
| 8 | water slot | 1 set | --- |
| 9 | Centrifugal dryer | 1set | 7.5kW |
| 10 | Vibration | 1set | 2*0.22kW |
| 11 | Wind transmission system | 1 set | 4kW |
| 12 | Storage Silo | 1 set | --- |
| 13 | Electrical control box | 1 set | --- |
The Machine Layout:
1.Belt conveyor
2.Compactor
3.Single screw extruder machine
4.Hydraulic screen exhanger
5.Single screw extruder machine
6.Hydraulic screen exhanger
7.Vertical Water-ring die face cutting system
8.Water slot
9.Centrifugal dryer
10.Vibration
Main Parameter Data Sheet:
Model | Screw diameter(mm) | L/D | Capacity(kg/h) | Main motor power(kw) | compactor power(kw) | Line length(m) |
PP/PE-85 | 85 | 25-33 | 200-250 | 75 | 55 | 10 |
PP/PE-100 | 100 | 25-33 | 250-300 | 90 | 55 | 12 |
PP/PE-120 | 120 | 25-33 | 350-400 | 110 | 90 | 15 |
PP/PE-130 | 140 | 25-33 | 400-500 | 132 | 110 | 18 |
PP/PE-160 | 160 | 25-33 | 600-800 | 160 | 110 | 20 |
PP/PE-180 | 180 | 25-33 | 600-800 | 250 | 132 | 26 |
