Product description:

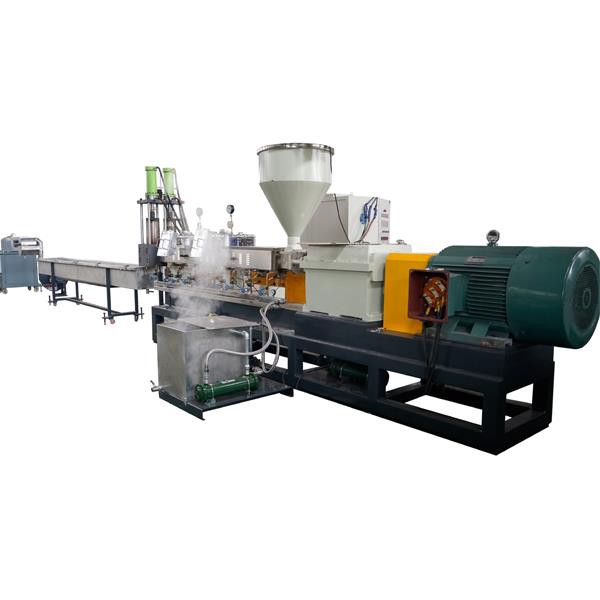

This plastic waste recycling machine unit is a parallel twin-screw extruder, which can effectively complete the extrusion and granulation of PET recycled raw materials. characteristics are mainly as follows:
1. The threaded components adopting computer-aided design are kneaded and conformal.
It has excellent self-cleaning function and good inter change ability. specifications include conveying block, mixing block, kneading block, counter-current block and toothed plate, etc., through appropriate and reasonable combination, material conveyance, plasticization and shearing can be realized, Dispersion, homogenization, exhaust, built pressure, etc., to complete the process of polymer materials.
2. According to the different states of the materials, plastic waste recycling machine the feeding system adopts a variety of structural forms, including single screw, twin screw, twin screw non-meshing type, hollow core spring type, double step type and metering pump and other volume metering feed.
It can also be equipped with weight-loss metering to complete higher metering requirements.
The Final Product:
The Raw Materials:
Main Technical Parameter:
Model | TSSK-50 | TSSK-65 | TSSK-75 | TSSK-95 |
(mm） | 50.5 | 62.4 | 71.2 | 91.2 |
(rpm） | 400/500 | 400/500 | 400/500 | 400/500 |
(kw） Main motor power | 37/45 | 55/75 | 90/110 | 220/250 |
L/D | 32-48 | 32-48 | 32-48 | 32-40 |
(kg/hr） | 20-150 | 100-300 | 300-600 | 600-1000 |
Main Machine List for 300kg/h:
300 KG/H plastic recycling extruder machine | |||
No. | Name | SPECIFICATIONS | Amount |
1 | Twin-screw main feeding system | Motor power: 1.5KW | 1 set |
2 | SHJ-65 co-rotating twin-screw extruder | L/D=40, SHJ-65 AC main Motor 75KW | 1set |
3 | Vacuum venting system | Vacuum pump power:1.5KW | 1set |
4 | Oil lubricant system | Motor power: 0.37KW | 1set |
5 | Soft water cooling system | Motor power: 0.55KW | 1set |
6 | Hydraulic screen changer | Motor power: 1.5KW | 1set |
7 | LQ-300 model pelletizer | Motor power: 4KW | 1set |
8 | Air-dry blower | Motor power: 1.5KW | 1set |
9 | 4 meter water trough | 1set | |
10 | Electrical control cabinet | 1set | |
