Product Introduction

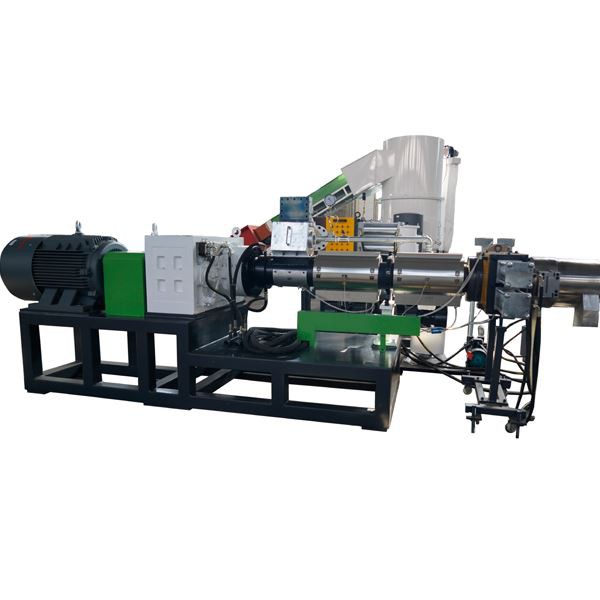

Plastic Pellets Machine For Sale is mainly used to process waste plastic films such as greenhouse films, beer bags, handbags, etc., woven bags, plastic tubs, beverage bottles, etc. This kind of pelletizing line is especially suitable for recycling dirty waste and the production of palletizing. The customer can select a suitable machine among double segment style, three-segment style, and four-segment style according to production requirements.
Features
This Plastic Pellets Machine For Sale is competitive compared with others. First of all, the special design of this machine can assure the good compounding effect and a more solid pellet. Besides, it adopts the advanced technology t make the process more simple to operate but in high efficiency. The automatic temperature control can monitor the high degree of automation. At the same time, the national energy-saving patented heater of it achieves low power consumption.
Production Process
waste plastic →convey feeding→magnetic screening →forced feeding→degassing single screw extruder→hydraulic screen exchanger
→material outing mold→degassing single screw extruder →hydraulic screen exchanger → material outing mold →water tank
→drying system →cutting granulating unit →storage hopper
More Information
1. Materials: PE, HDPE, LDPE, LLDPE, PP, CPP, BOPP, EPS, etc.
2. Shape: Film, Bag, Woven bag, Raffia,Bubble film, Foam, Nonwoven fabric, Filament, Sheet, Chips
3. Pelletizing Way: Pull Strap(Like Noodles) or Water-Ring Hot Die
4. Extruder: Two Stage or Single Stage
5. Degassing: Two degassing ( One by Vacuum and One by Natural)
6. Double service position hydraulic screen changer for No stopping, no leaking, changing screen time≤2 sec.
Machine Datasheet
Model | Screw diameter(mm) | L/D | Capacity(kg/h) | Main motor power(kw) | compactor power(kw) | Line length(m) |
PP/PE-85 | 85 | 25-33 | 200-250 | 75 | 55 | 10 |
PP/PE-100 | 100 | 25-33 | 250-300 | 90 | 55 | 12 |
PP/PE-120 | 120 | 25-33 | 350-400 | 110 | 90 | 15 |
PP/PE-140 | 140 | 25-33 | 400-500 | 132 | 110 | 18 |
PP/PE-160 | 160 | 25-33 | 600-800 | 160 | 110 | 20 |
Main Machine Contains
No. | Machine Name | Quantity |
1 | Belt Conveyor | 1 set |
2 | Film Compactor | 1 set |
3 | SJ Serious Single Screw Extruder(double stage, mother extruder+baby extruder) | 1 set |
4 | Hydraulic Screen Filter | 1 set |
5 | Water-ring Pelletizing System | 1 set |
6 | Dewatering Machine | 1 set |
7 | Vibrating Screen | 1 pc |
8 | Blower&storage Hopper | 1 pc |
9 | Electric Cabinet | 1 set |
