It has a complete product production and quality assurance system and perfect after-sales service. Under the guidance of full-time engineers, it strictly controls the process and production to ensure the quality of Plastic Pp Pe Pelletizing Making Machine, Film Squeezing Pelletizing Machine, plastic tube making machine. We will further accelerate technological transformation, attract outstanding talents, gradually establish a modern enterprise management system. You are welcomed to join us for more possibilities and benefits. We uphold the concept of responsibility, which is not only reflected in the treatment of customers, but also in all aspects such as partners and employees. Layer by layer, we strive to give our best products and services to customers, welcome the majority of businesses to call and inquire.
Compactor cutter can effectively dry materials, agglomerate, friction self-heating, high-speed forced feed into the screw after the material reaches a certain temperature, improve the output and reduce the heating of the screw to the plastic, accelerate the plasticization process; effective Energy savings;

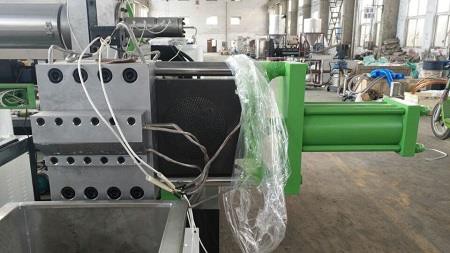

Hydraulic screen changer is installed on the extruder die-head to effectively remove the impurities in the material; different quality of the finished product can be produced through the use of different mesh filters;
This product special design of the extruder head part can effectively remove the hidden moisture inside the material and improve the granulation quality;
This machine can also be equipped with three stage granulation system, using three extruders to pass the material through secondary filtration, making the produced particles cleaner and higher quality;
This product also can be equipped with a vibrating screen to sort out unqualified products; making the product particle size uniform and nice looking. The follow-up pelleting type can choose to strand/noodle pelletizer, or die face cutting (water ring pelletizer) to save labor and reduce waste;
The machine line can be specially designed according to the cleanness of the customer's raw material and the quality requirement of the final product;
Common instruments control
1. Temperature controller,tachometer,low-electric components,such as breaker and control buttons are of domestic and foreign famous brand.
2. Control units like solenoid valve are of European brand.
3. The whole extrusion line has driving&interilock project,and trouble&interlock project system.
PLC touch screen control
1. Informtionization 2.modularization 3.intellgent control 4.stable and reliable operation 5. Security by CE standards 6. Remode mainlerance
Main Parameter data sheet:
Model | Screw diameter(mm) | L/D | Capacity(kg/h) | Main motor power(kw) | compactor power(kw) | Line length(m) |
PP/PE-85 | 85 | 25-33 | 200-250 | 75 | 55 | 10 |
PP/PE-100 | 100 | 25-33 | 250-300 | 90 | 55 | 12 |
PP/PE-120 | 120 | 25-33 | 350-400 | 110 | 90 | 15 |
PP/PE-140 | 140 | 25-33 | 400-500 | 132 | 110 | 18 |
PP/PE-160 | 160 | 25-33 | 600-800 | 160 | 110 | 20 |
PP/PE-180 | 180 | 25-33 | 600-800 | 250 | 132 | 26 |
Main machine contain:
No. | Machine Name | Quanlity |
1 | Belt Conveyor | 1 set |
2 | Film compactor | 1 set |
3 | SJ serious Single Screw Extruder(doube stage,mother extruder+baby extruder) | 1 set |
4 | Hydraulic screen filter | 1 set |
5 | Water-ring pelletizing system | 1 set |
6 | Dewatering machine | 1 set |
7 | Vibrating screen | 1 pc |
8 | Blower&storage hopper | 1 pc |
10 | Electric Cabinet | 1 set |
Our Service:
1. We will provide all the machines for the complete production according to customer's requirements.
2. We will provide complete service for factory layout and other information to help customer to build the factory.
3. We will provide good service for machine installation and training, until the customers can run the machines and make stably production.
4. Except one year quality guarantee, we will provide after-sell service for all the life.
5. For long-term cooperation, we always provide good quality, good price and good service to customer.
To effectively improve our ability to launch internationally, we accelerate the research and development of premium technologies and regularly promote our China Plastic Waste Recycling Machinery Manufacturers for Bottle Film upgrades. After years of development and improvement, we now have world-class machinery and equipment, professional and excellent technical staff and a huge sales network. We are able to also offer you with free of charge samples to meet your requirements.
